BRTP07ISS1PC
一轴伺服机械手
查看3D
详情介绍
因改良等原因,规格及外观有所变更时,不再另行通知,敬请谅解。
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
产品详情
BRTP07ISS1PC 机型适用于60T-200T的各型卧式射出成型机的成品取出,上下手臂为单截式,上下采用AC伺服马达驱动,定位精准,速度快,寿命长,故障低,其余部位采用气压驱动,经济实惠。安装机械手可增加产能( 10-30% )降低产品的不良率,保障操作人员的安全性,减少人工,精准控制生产量,减少浪费。
主要规格 MainSpecification
电源容量(kVA) | 适用成型机(ton) | 驱动方式 | 治具型式 |
1.27 | 60T-200T | AC伺服马达、气缸 | 零吸零抱 |
横行行程(mm) | 引拔行程(mm) | 上下行程(mm) | 最大荷载(kg) |
/ | 115 | 750 | 2 |
取出时间(sec) | 全循环时间(sec) | 放出角度(degree) | 空气消耗量(NI/cycle) |
1.4 | 5 | / | 3 |
重量(kg) |
50 |
机型表示:I:单截式 W:双截式 S:单臂机械手(成品臂) S1:一轴AC伺服马达驱动(成品臂/料头臂上下)
Model representation: I:Single cut type. W:Telescopic type. S:Product arm. S1:One-axis driven by AC Servo Motor(Traverse-axis)
上述取物时间,循环时间为我司内部测试标准测试结果,在机器实际应用过程中会因实际使用行程,负载,调试参数不同而有所变化。
The above-mentioned cycle time are the results of our company's internal test standard. In the actual application process of the machine, they will vary according to the actual operation.

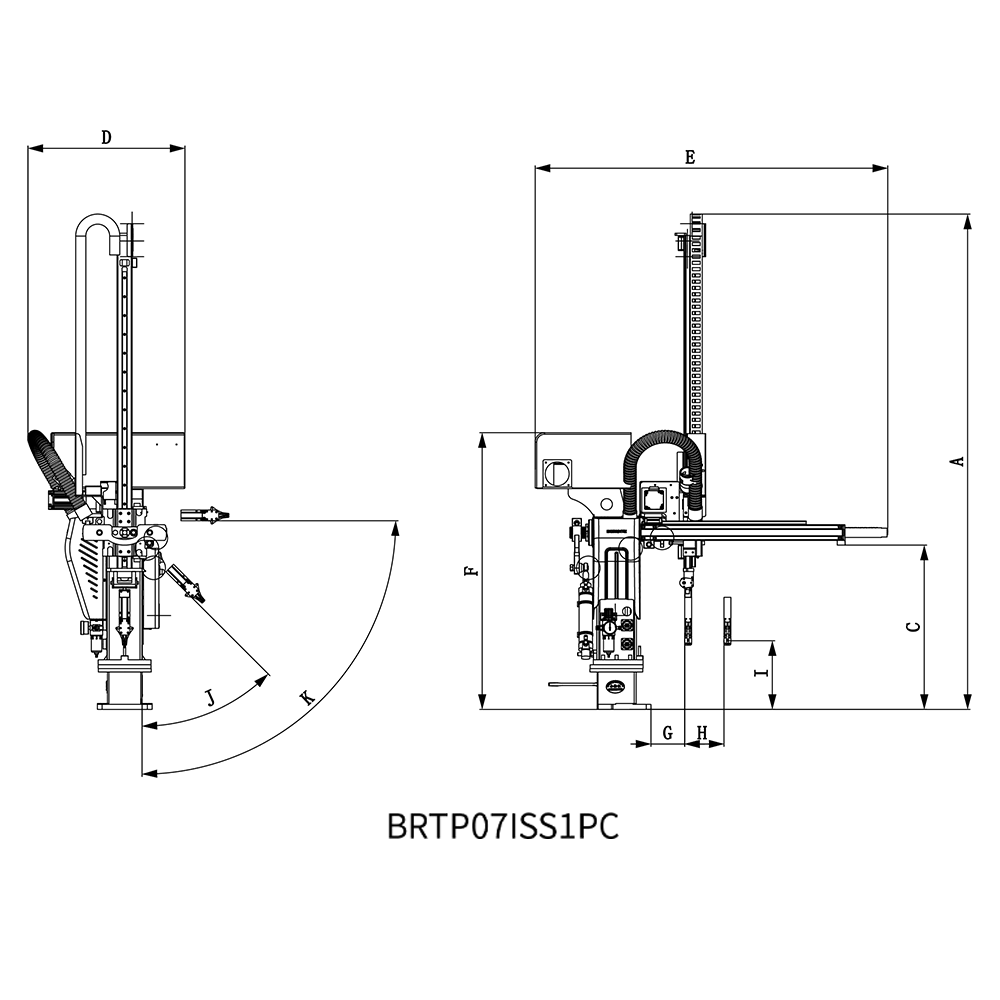

A | B | C | D | E |
1577 | / | 523 | 500 | 1121 |
F | G | H | I | J |
881 | 107 | 115 | 224 | 30° |
K | ||||
90° |
